Stainless Steel Pipe Eye End Cap 1Inch Fitting Hardware /Marine Boat Yacht External Eye End / Canopy Tube End
Stainless Steel Pipe Eye End Cap 1Inch Fitting Hardware /Marine Boat Yacht External Eye End / Canopy Tube End
Stainless Steel Pipe Eye End Cap 1Inch Fitting Hardware /Marine Boat Yacht External Eye End / Canopy Tube End
Stainless Steel Pipe Eye End Cap 1Inch Fitting Hardware /Marine Boat Yacht External Eye End / Canopy Tube End
Stainless Steel Pipe Eye End Cap 1Inch Fitting Hardware /Marine Boat Yacht External Eye End / Canopy Tube End
Stainless Steel Pipe Eye End Cap 1Inch Fitting Hardware /Marine Boat Yacht External Eye End / Canopy Tube End
Model
TRD-EYEEND01

Item specifics

Material
Marine Grade 304 or 316, Stainless Steel
Process
CNC machining,Casting,Stamping,Hot forging
Requirements
Good quality material, high surface, no rust
Package
Thickened Woven Bag,Five Ply Cartons, Pallets
Application
Deck Handrail, Wire Rope, Tensile Structure
Relative Hardware
Cable Railing Turnbuckle, Swage Terminal, Stud

Review

Description

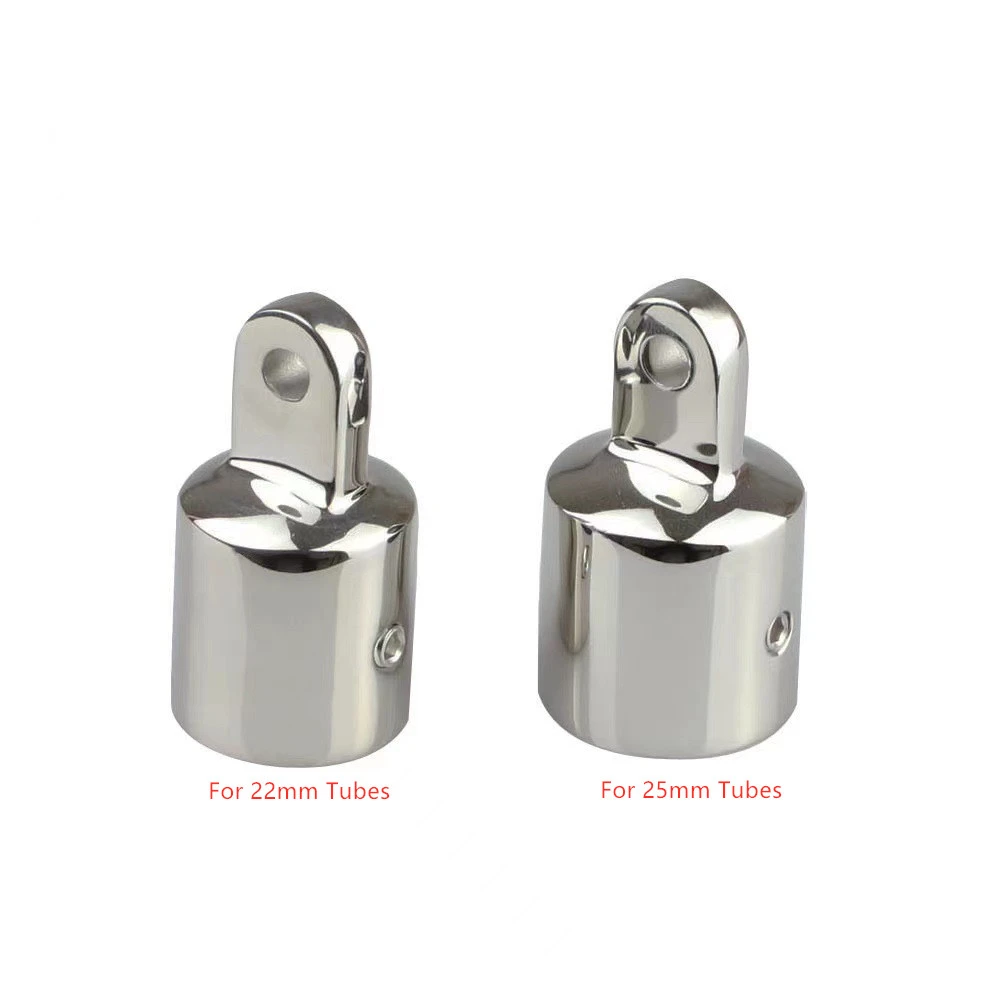

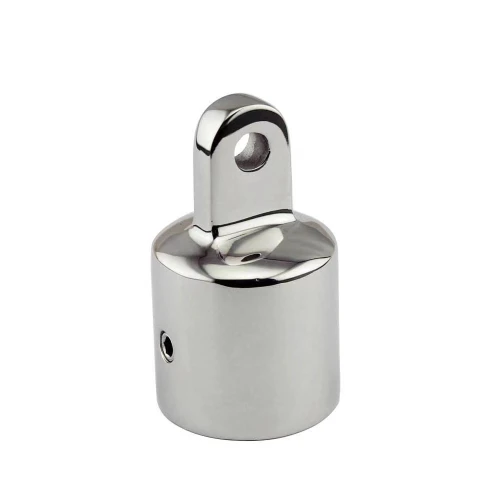

Stainless Steel Pipe Eye End Cap


Feature:
Made of highly polished 316 stainless steel
Extremely Strong and Durable.

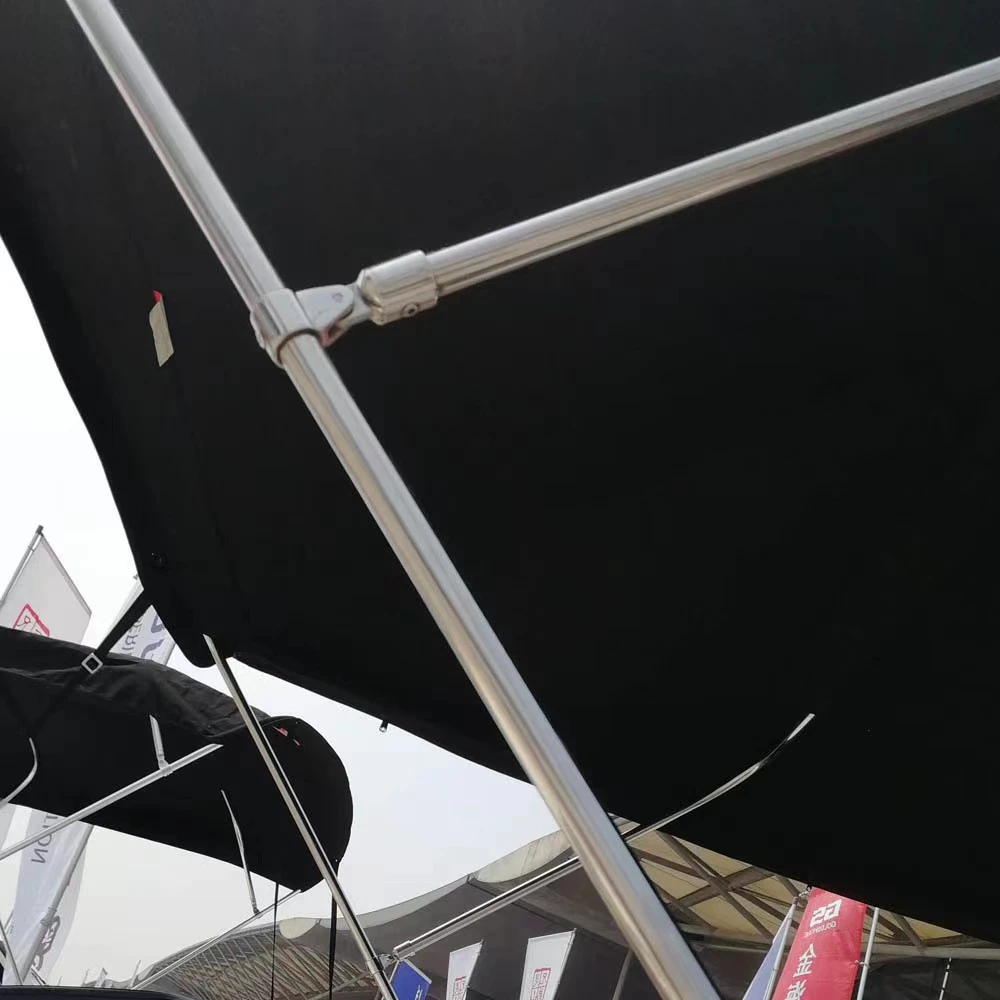

Used in the construction of Bimini Boat Top Frames.
Provide maximum corrosion resistance for salt-water marine environments.
Polished to a beautiful, mirror-like finish.

Specifications:
Condition: 100% new
Color: Silver
Material: Stainless Steel
Type: 20mm, 22mm, 25mm, 30mm, 32mm

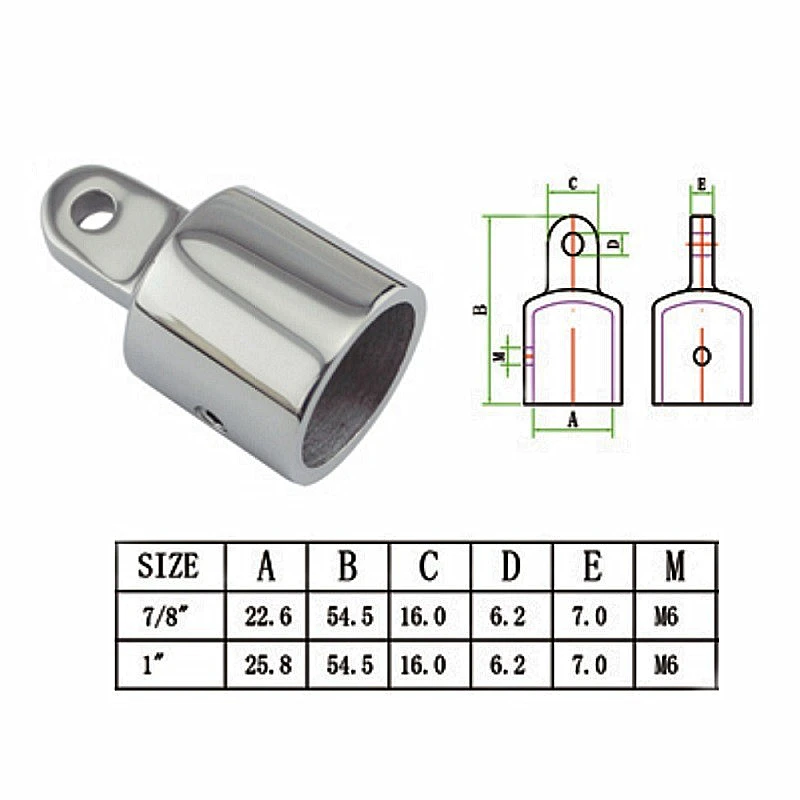

Size:

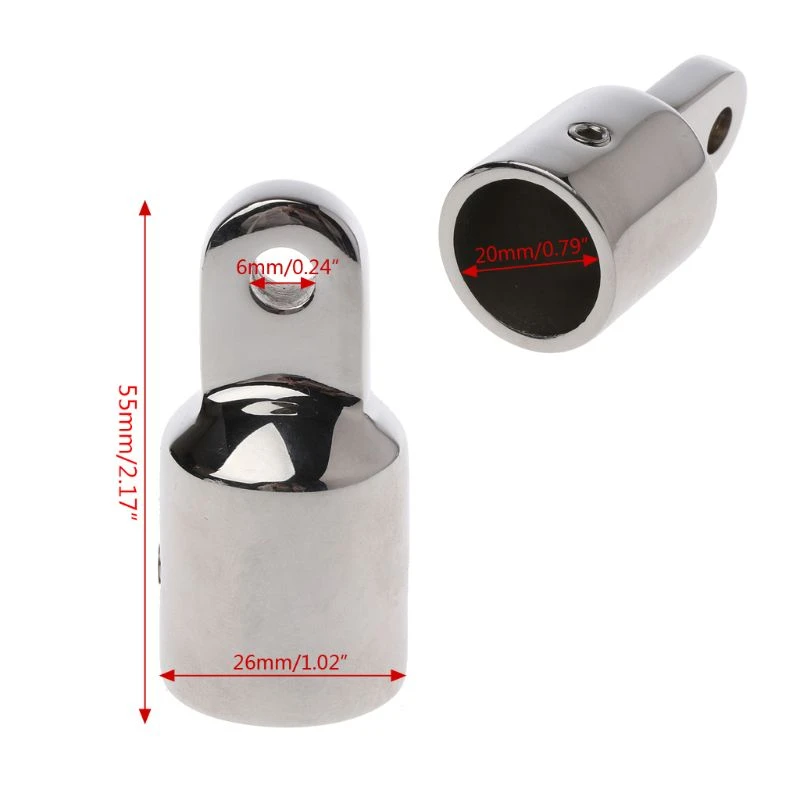

20mm
Install Hole Diameter: 6mm (0.24 inch)
Overall Length: 64mm (2.13 inch)
Suitable: for 0.79'' Pipe

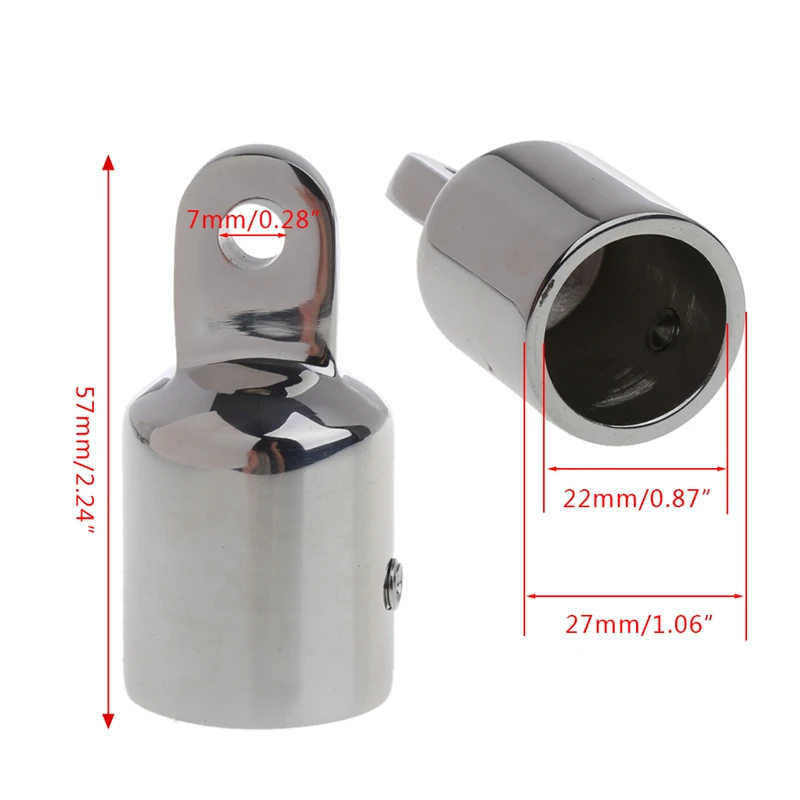

22mm
Install Hole Diameter: 0.7 cm (0.27 inch)
Overall Length: 5.7cm (2.2 inch)
Suitable: for 7/8'' Pipe

25mm or 25.4mm
Install Hole Diameter: 6mm (0.24 inch)
Overall Length: 57mm (2.24 inch)
Suitable: for 1'' Pipe

30mm
Install Hole Diameter: 0.8 cm (0.31 inch)
Overall Length: 5.7cm (2.2 inch)
Suitable: for 1.18'' Pipe

32mm
Install Hole Diameter: 8.5mm (0.33 inch)
Overall Length: 5.8cm (2.3 inch)
Suitable: for 1.26'' Pipe

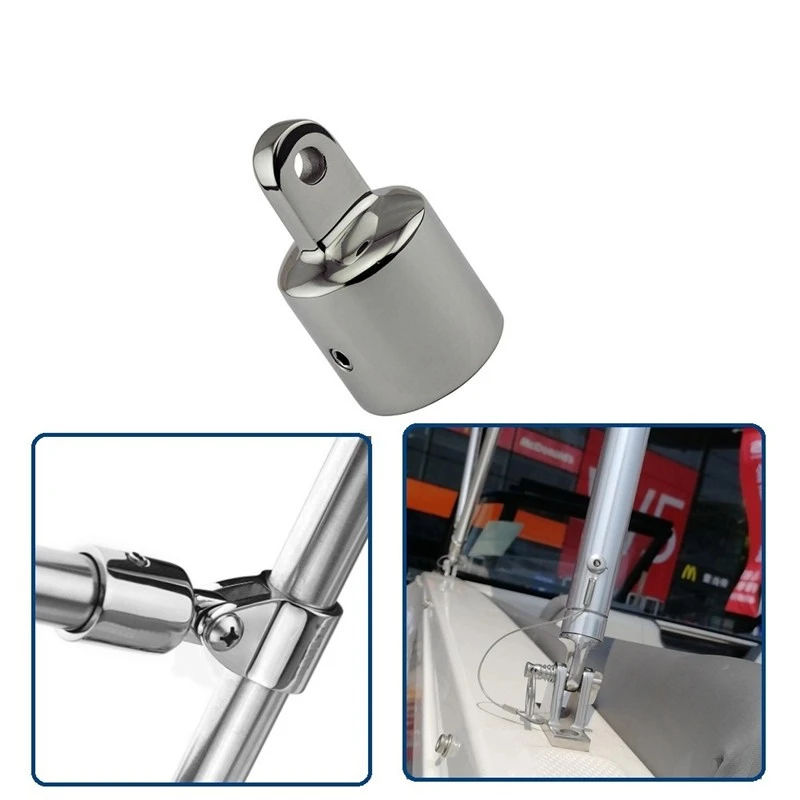

APPLICATION
PS: ODM Order and Non-Standard products also could made and designed by Terada Team, Welcome to Contact us.
