Stainless Steel Shade Sails D Ring for Wire Rope

Group Shade Sail Fittings
Min. Order 1000 piece
Terms of Payment L/C, T/T
Update Time 2020-08-10
Item specifics
MaterialStainless steel 304-A2,316-A4
ProcessCasting/Forged
RequirementsGood quality material, high surface, no rust
PackageThickened Woven Bag,Five Ply Cartons, Pallets
ApplicationWire Rope, Tensile Structure, Shade Sail
SizeM8X50,M6X50,M5X50,M4X50
  • Description
  • Product review
Turnbuckle Description

This stainless steel Shade Sails D ring with a ring groove inside for linking and protecting the wire rope. Which is widely used for shade sails.

Made of marine grade 316 stainless steel, it can be better rust and corrosion resistant ,make products more beautiful. By a way,The material marine grade 316 flexibility is perfect for stretching and traction.Because it is a marine grade 316 material. It will be better used with outdoor shade sail and tensile structure to increase the used time and outdoor project quality. So that the outdoor visor project can better display its industrial beauty. which application include sunshade structures such as hips and ridges or tension film shade sails.

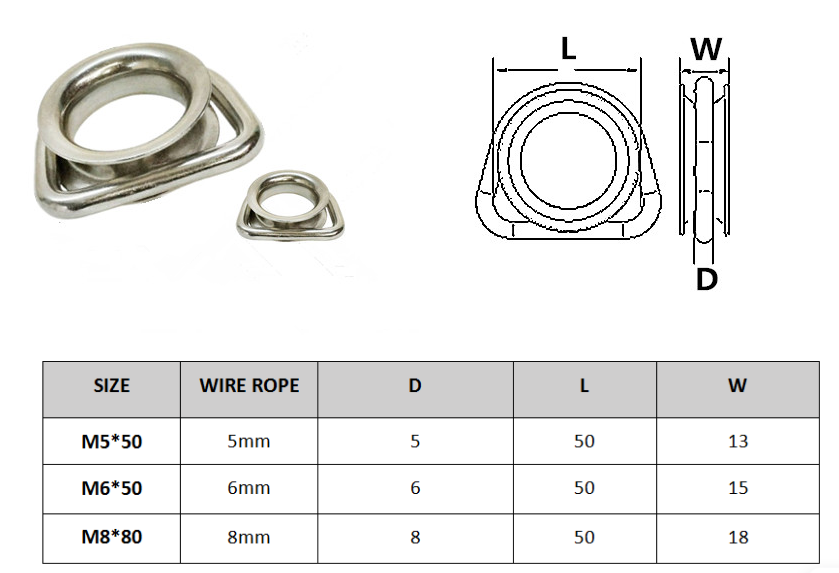

For this D ring, we have developed many type specifications to choose. The most popular type is M8X50 for 8mm 7*19 Cable, which is 50mm long. Of course, considering the different needs of different customers, we also have other sizes Shade Sails D ring. If you have special engineering requirements need special dimension to match your project, we also could make design changes according to your needs to meet your requirements.
If you are interested in our products and want to know more about it, you can contact us by email, we will offer you the most professional service and answer.

Note: The finished structure needs to be reasonably designed by the industry’s designers and installed by trained contractors in accordance with local building codes.
In these guidelines, it is the responsibility of the manufacturer to determine the appropriate hardware for a particular installation.




Material

                                  l Stainless Steel 316 ( AISI316)                        l Stainless Steel 304 ( AISI304)
                           l Carbon Steel 45#                                            l Carbon Steel Q235
Surface Treatment

                                  l Normal Polished                                             l Hand Mirror Polished
                           l Galvanized                                                     l Paint Spraying
Process

                                  l CNC Processing                                             l Precision Casting
                           l Hot Forged                                                     l Stamping
Application
Tensile Structure
Yacht Boat
             Yacht Boat
Production Show
PS: ODM Order and Non-Standard products also could made and designed by Terada Team, Welcome to Contact us.
